Forged Steel Mill Pinion Gears Custom ISO / CE

Luoyang Zhongtai Industrial Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

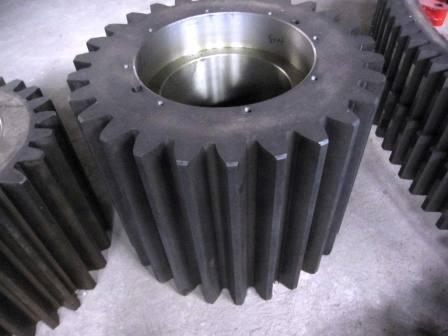

Forged Steel Mill Pinion Gears Custom ISO / CE

Brand Name : ZTIC

Model Number : Mill Pinion Gear

Certification : ISO / CE

Place of Origin : Henan, China

MOQ : 1 Set/Sets

Price : negotiable

Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Set/Sets per Year

Packaging Details : Simple packaging for ball mill gear

Product name : Pinion gear/ small gear

Material : custom

Diameter(mm) : custom

Weight(kg) : according to drawings

Application : Various types of mills

Processing method-1 : Forged ring,Rolled plate,Cast steel

Ports : QingDao,ShangHai,TianJian

Warranty : 12 months

Contact Now

High Quality Forged Steel Mill Pinion Gears Custom Mill Pinion

1. Pinion design

Bored solid on shaft / integral self aligned spur, helical or double helical

Materialization forged alloyed steel through hardened, case hardened or quenched and tempered

Spur, helical or double helical carburized induction nitrided

2. Characteristics

• Gear cutting with hobs

• The gear quality is checked by profile tester

• Tooth flank modification
• Profile correction
• Lead correction (straight/barrel)

• Designs /ratios according to ISO-DIN-A.G.M.A.

• FEM/FEA simulation software

High Quality Forged Steel Mill Pinion Gears Custom Mill Pinion

3. Pinion gear material
42CRMO STEEL DATA

C : 0.38-0.45%
Si: 0.17-0.37%
Mn: 0.50-0.80%
S : Allow residual content <0.035%
P : Allow residual content <0.035%
Cr: 0.90-1.20%
Ni: Allow residual content <0.030%
Cu: Allow residual content <0.030%
Mo: 0.15-0.25%

MECHANICAL DATA

Tensile Strength σb (MPa): >1080(110)
Yield point σs (MPa): >930(95)
Reduction of area ψ (%): >45 Akv (J)
Impact absorbing energy Akv(J): >63
Impact toughness value αkv (J/cm2): >78(8)
Elongation σ5 (%): >12
Hardness: <217HB

High Quality Forged Steel Mill Pinion Gears Custom Mill Pinion

Forged Steel Mill Pinion Gears Custom ISO / CE

4. Standards/Certificates

• UNI EN ISO

• AWS

• ASTM

• ASME

• DIN

5. Applications
Our pinions are applied in the cement and minerals industries:

Ball - mills

ROD - mills

Semi Autogeneous Grind (SAG)

Rotary kilns/coolers/dryers

6. Advantages

One Source

Original Equipment Manufacture (OEM) Technical Drawings

Gearing technical expertise for kilns and grinding mills

State of the art manufacturing facilities and quality

Global sales and service support

High Quality Forged Steel Mill Pinion Gears Custom Mill Pinion

Forged Steel Mill Pinion Gears Custom ISO / CE

After-sales service

LUOYANG ZHONGTAI INDUSTRIES able to provide:

1. ENGINEERED SPARES - DESIGN AND MANUFACTURING

2. LARGE VOLUME STEEL AND IRON CASTING FOUNDARIES

3. HUGE MACHINE SHOP CAPABILITIES

4. TRAINING PROGRAMMES

5. PREVENTATIVE MAINTENANCE PROGRAMS

6. PREVETATIVE MAINTENANCE SERVICES

7. COMPREHENSIVE MAINTENANCE PROGRAMS

LUOYANG ZHONGTAI INDUSTRIES’s Field Service Engineers are trained specifically in the LUOYANG ZHONGTAI INDUSTRIES brand group products but are capable of undertaking the servicing of other OEM brands. Our technicians are equipped with the most advanced technological diagnostic equipment available to trouble shoot your equipment to optimise performance and minimise down time. LUOYANG ZHONGTAI INDUSTRIES also has an extensive capability in supplying all you consumable and electrical/ mechanical spare part needs.

High Quality Forged Steel Mill Pinion Gears Custom Mill Pinion
