1. Introduction of jaw crusher accessories castings and forgings
Jaw crusher accessories mainly include: edge guard plate, jaw plate, tooth plate, toggle plate, triangular belt, etc.
(1) Jaw crusher side jaw plate:
Jaw crusher side jaw plate referred to as jaw plate, jaw plate is divided into fixed jaw plate and movable jaw plate, jaw crusher wear resistant parts. In the running state of jaw crusher, the moving jaw is attached to the movable jaw plate to do compound pendulum movement, and the fixed jaw plate forms an Angle to squeeze the stone. Therefore, the jaw plate is relatively easy to damage parts in the jaw crusher (referred to as: vulnerable parts).
(2) Jaw crusher edge guard plate:
Jaw crusher side guard plate side guard plate is located between the fixed tooth plate and movable tooth plate, high quality high manganese steel casting, in the whole body is mainly to protect the jaw crusher frame wall.
(3) Jaw crusher tooth plate:
Jaw crusher tooth plate movable jaw plate and fixed jaw plate are high quality high manganese steel castings, in order to prolong its service life, its shape is designed to be symmetrical, that is, when one end of the wear can be turned to use. Movable tooth plate and fixed tooth plate are the main ground for stone crushing, and the movable tooth plate is installed on the moving jaw to protect the moving jaw.
2. Jaw crusher accessories castings and forgings
(1) Frame body

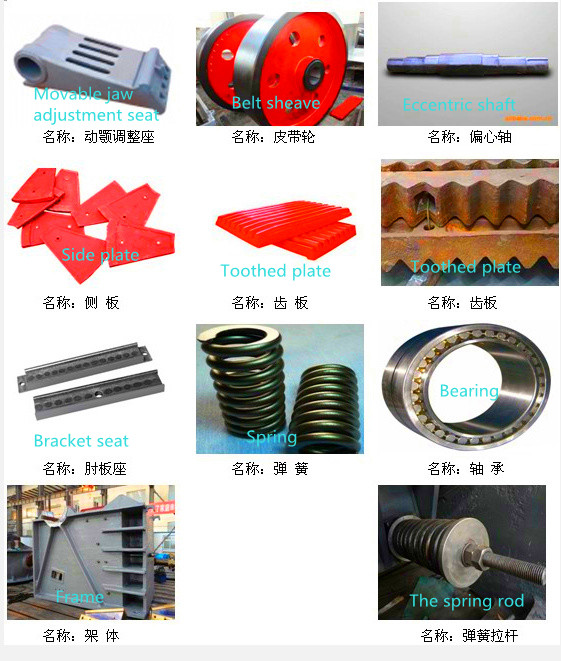

Frame body, bracket plate, side lining plate, fixed tooth plate, baffle plate, support, slide seat, wedge, pull rod, front tray, bracket pad
(2) Move the jaw
Belt pulley, counterweight iron, through cover, stop ring, sealing sleeve, cone sleeve, gland, stop oil ring, eccentric shaft, moving jaw, shaft end cover, moving jaw tooth plate, toggle pad, flywheel
(3) Smooth department
Manual dry oil station, filter, oil feeder
(4) Connecting rod
Bracket, connecting rod head, connecting rod, bracket
(5) Pull rod
Pull rod, spring, slide seat
3. Jaw crusher accessories castings and forgings table:
| | Accessories | SPEC |
| Frame body | Frame body, bracket plate, side lining plate, fixed tooth plate, baffle plate, support, slide seat, wedge, pull rod, | customizable |
| Move the jaw | Belt pulley, counterweight iron, through cover, stop ring, sealing sleeve, cone sleeve, gland, stop oil ring, eccentric shaft, moving jaw, shaft end cover, moving jaw tooth plate, toggle pad, flywheel | customizable |
| Smooth department | Manual dry oil station, filter, oil feeder | customizable |
| Connecting rod | Bracket, connecting rod head, connecting rod, bracket | customizable |
| Pull rod | Pull rod, spring, slide seat | customizable |
